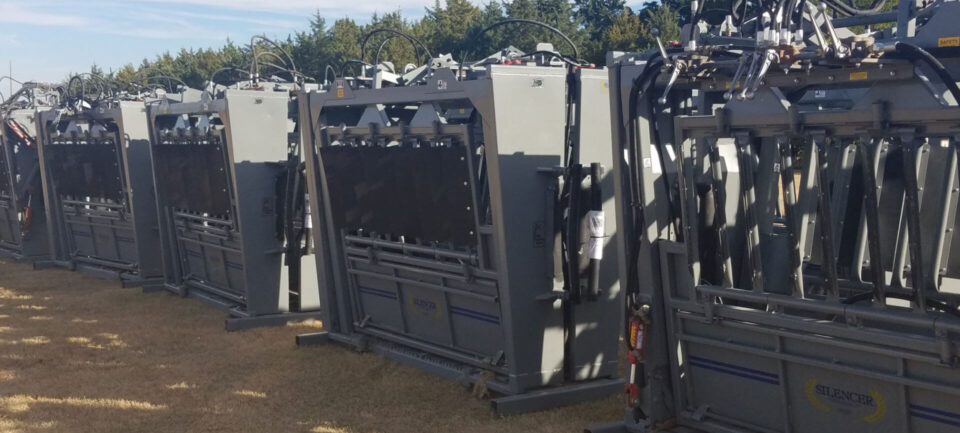

SILENCER® Hydraulic Chute
Heavy Duty
The SILENCER® Heavy Duty model is designed for increased chute life with reinforced construction, modular construction for superior maintenance, and replaceable heavy-duty drop bars. This model can take a beating!
Perfect for heavy usage and larger animal traffic.
Available in standard, extended, and wide body sizes.
- Length
- 100”
- Width
- 48”
- Height
- 93”
- Approx. Weight (lbs.)
- 3095 lbs
- Mainframe
- 4” x 2” x 3/16”, rectangular tubing
- Side Gates
- 2” x 2” x 1/4”, square tubing
- Cylinders
- (6) 4 x 2 cylinders, (1) 2 x 6-cylinder, (8) main cylinder pins greaseable
- Head & Tall Doors
- Full-opening and fully sheeted
- Overall Outside Length
- 102"
- Overall Inside Length
- 91"
- SILENCER Pump Weight
- 235 lbs.
- Head & Tailgate Height
- 67 1/2”
- Inside Chute Height
- 67 1/2”
- Total Width (Doors Open)
- 67"
- Total Width Doors Closed (Including Hydraulic Levers)
- 59”
- Fitted Hoses
- Yes
- 30ft of Extension Hose
- Yes
- Reinforced Construction
- Yes
- Oil-based Urethane Bearings
- Yes
- 130 Polyethylene Contact Points
- Yes
- Standard 3 Spool Hydraulic Valves
- Yes
- Floor
- 1/4” foor for increased life of chute
- Modular Construction for Superior Maintenance
- Yes
- Replaceable Heavy-duty Drop Bars
- Yes
- Bearings & Connectors
- 8 quick-change, re-lube roller bearings — top connectors
